Pass Boxes

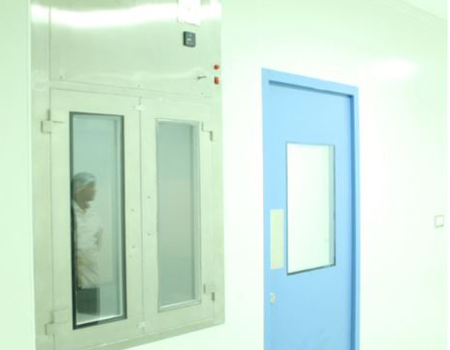

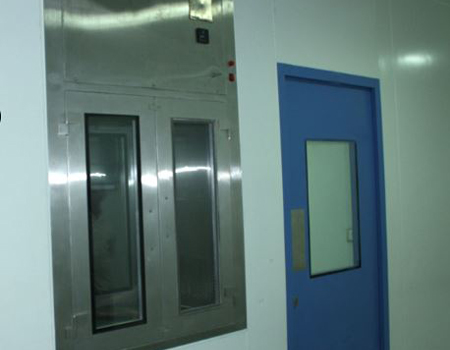

General Specification for Dynamic Pass Box
Material of Construction : SS 304 / SS 316.
Type : Wall / Floor Mounted.
Pre Filter of EU 6 Grade, 95% down tp 5 Microns.
Final Supply Filter : Minipleat HEPA Filter with Hot Melt Technology, 99.99% down to 0.3 microns.
Blower Motor : Dynamically balanced with Stator, Rotor Assembly.
Grills : SS 304 Perforated.
Doors : Sandwitched door with double sided View Panel, Auto Lock Assembly.
Pressure Monitoring : Analog / Digital.
Lights : CFL Light through clear acrylic to get maximum illumination / UV Light.
Air Cleanliness : ISO 5.
Air Velocity : 0.45 +/- 0.1 m/sec.
Noise Level : Less than 70 dB.

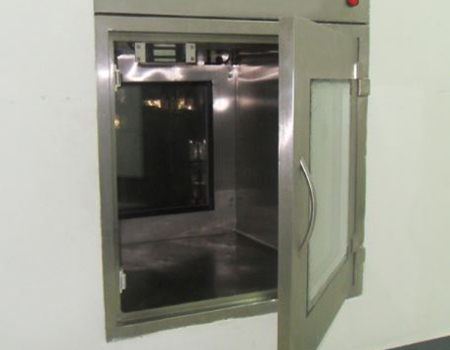

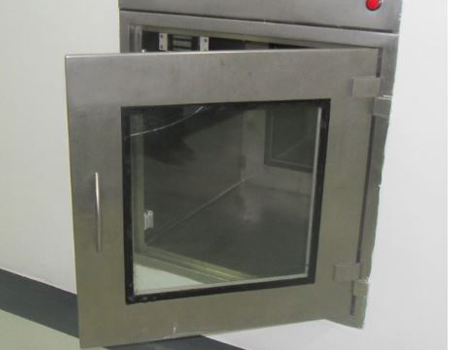

General Specification for Static Pass Box
Material of Construction : SS 304 / SS 316.
Type : Wall / Floor Mounted.
Doors : Sandwitched door with double sided View Panel, Auto Lock Assembly.
Lights : CFL Light through clear acrylic to get maximum illumination / UV Light.
 |
 |
 |
 |
